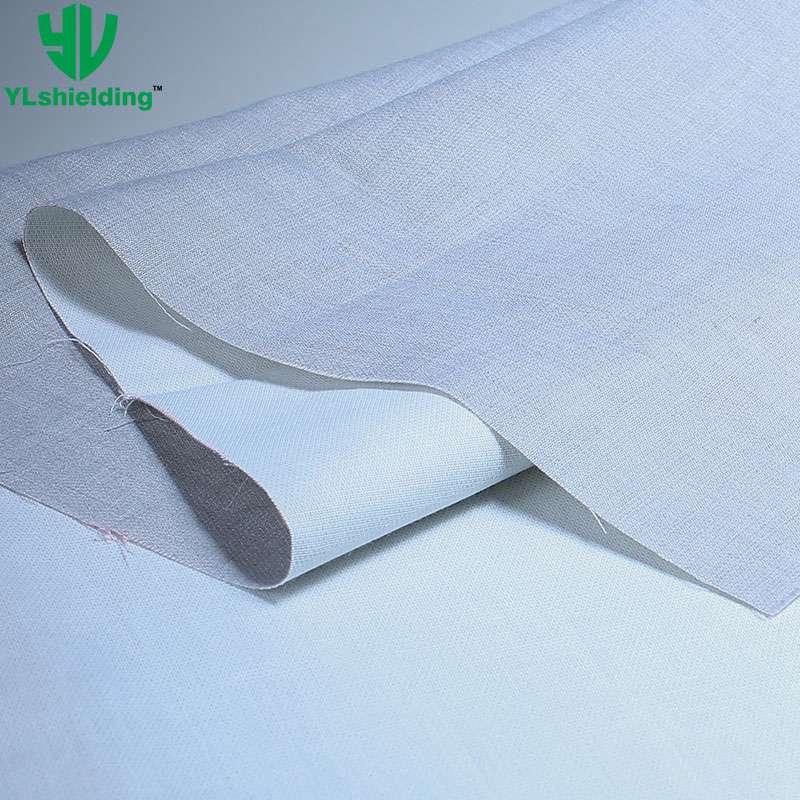

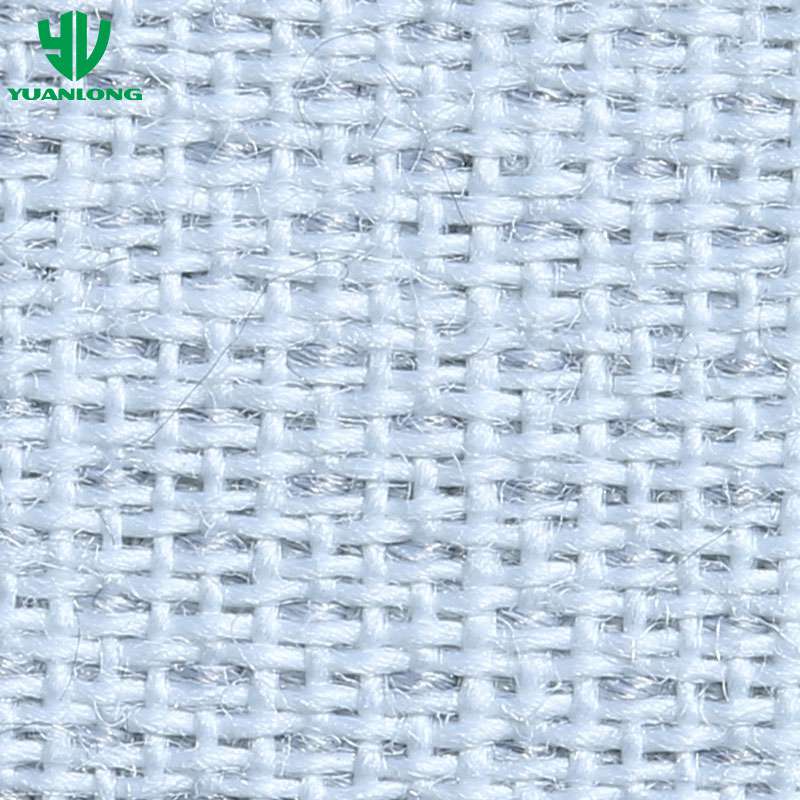

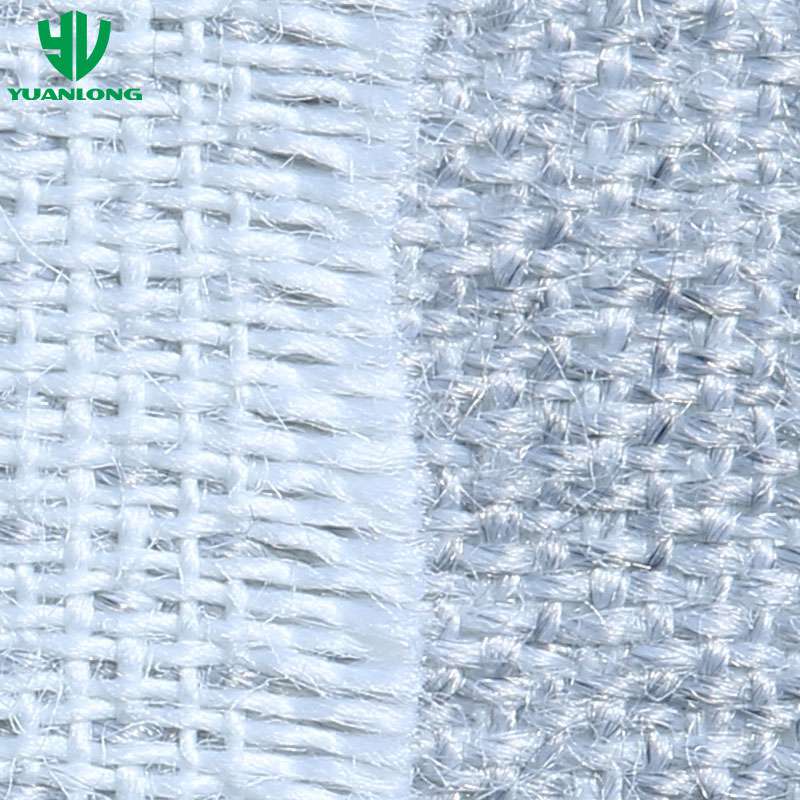

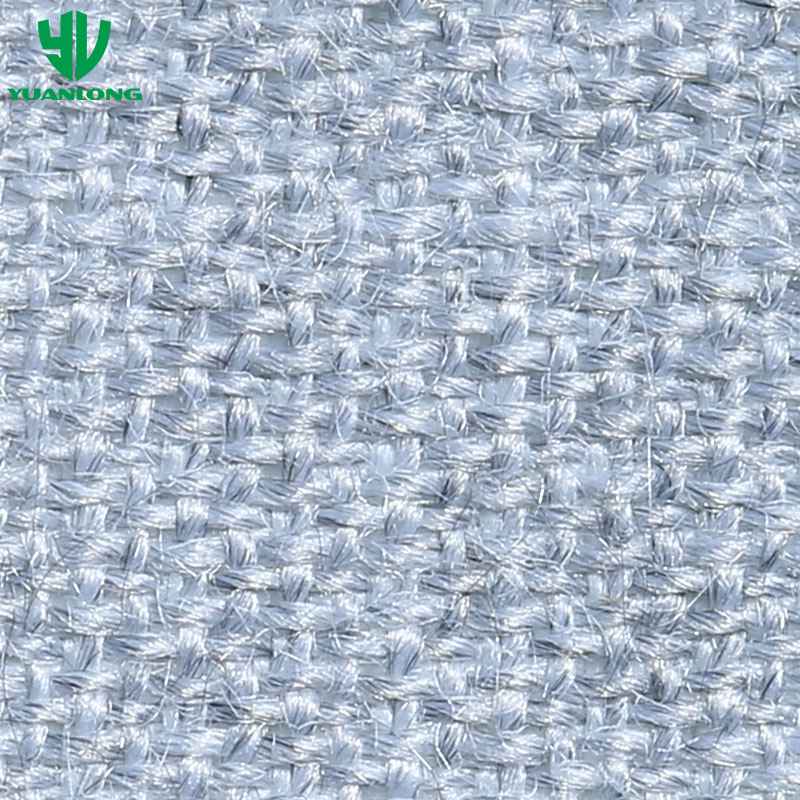

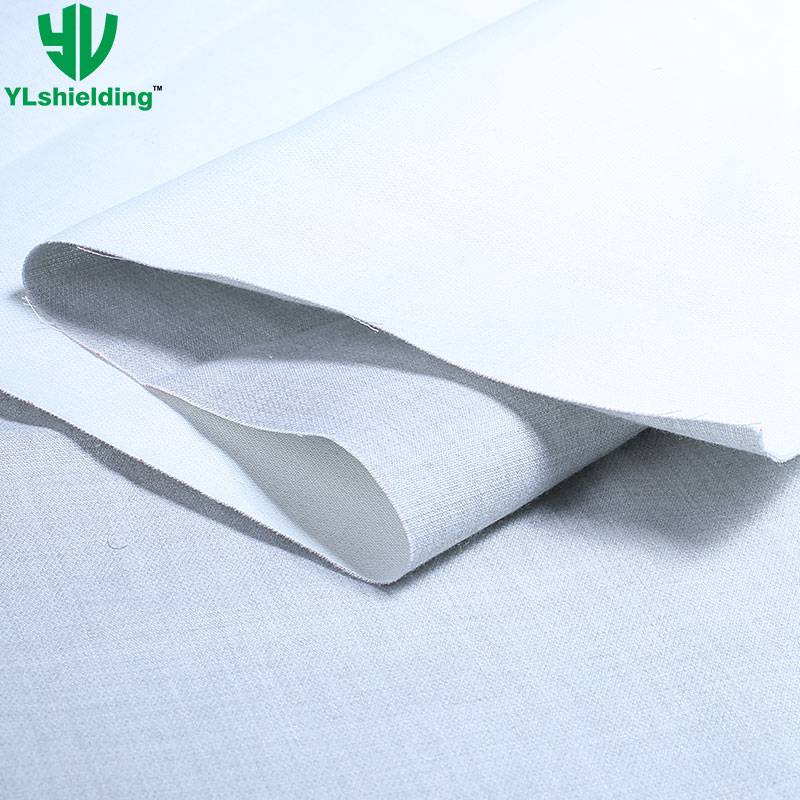

Double-faced Stainless Steel Fiber & Cotton Woven Fabric

Model No.: YL-DSS30

Composition: Face 100% cotton, Back 30% stainless steel fiber / 45% polyester / 25% cotton

Weight: 190 g/sqm

Width: 150 cm

Inquire Now Add to Cart

Product Features

Double-faced stainless steel fiber & cotton woven fabric is made with 30% stainless steel fiber (70% CVC) on one side and 100% cotton on the other side. So it has conductive / shielding performance as well as actual textile characteristics. With a much cheaper price than silver fabrics and, however, more durable, this fabric is usually used for protection against high frequency electromagnetic radiation, with good screening attenuation even at high frequencies, and can also be grounded for shielding low frequency electric fields.

Technical Data

Composition	Face 100% cotton, Back 30% stainless steel fiber / 45% polyester / 25% cotton
Weight	190 g/sqm
Width	150 cm
Surface Resistivity	< 50 Ohm/sq
Shielding Effectiveness	≥ 40 dB / 99.99% (10MHz - 3GHz)

Application

Clothing, Curtain, Bedding, Appliance cover, Grounding, etc.

Test Report

REACH (SVHC) compliant

Care Notes

Wash gently no higher than 60°C

No bleaching

No wring

Hung to dry

Iron without steam at degree 1
