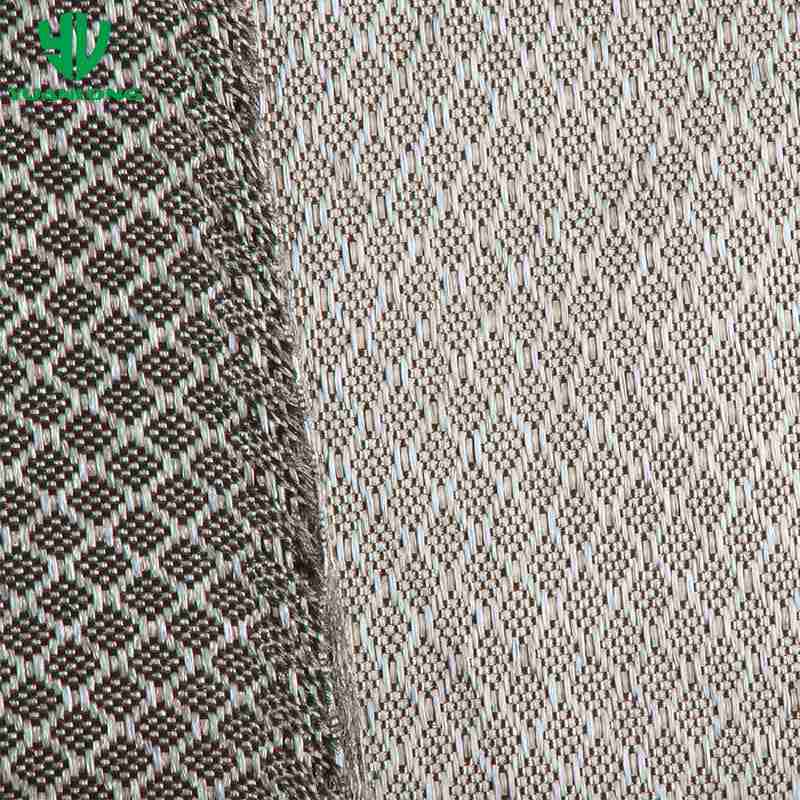

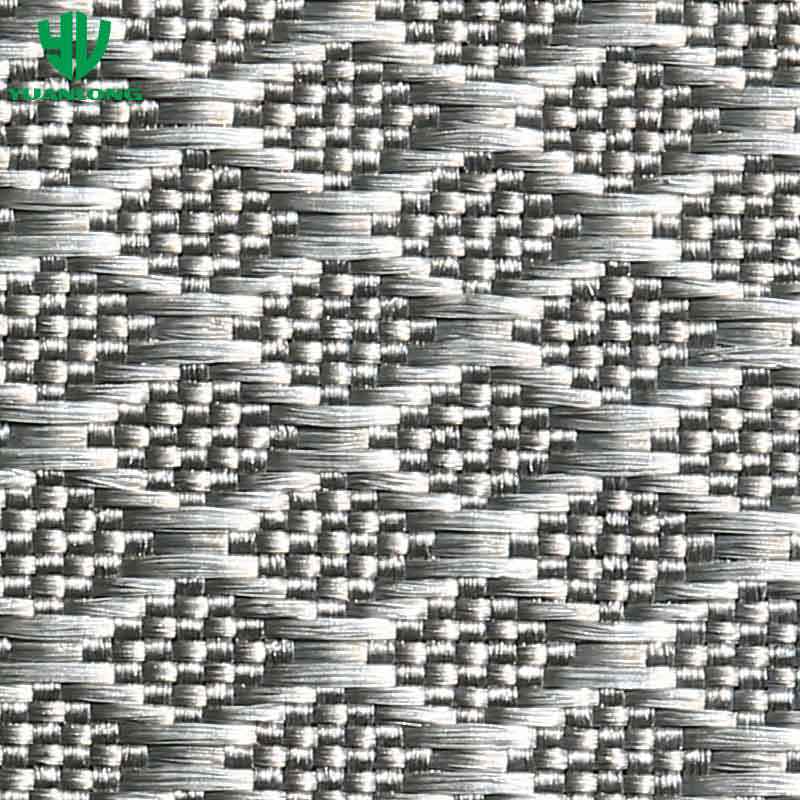

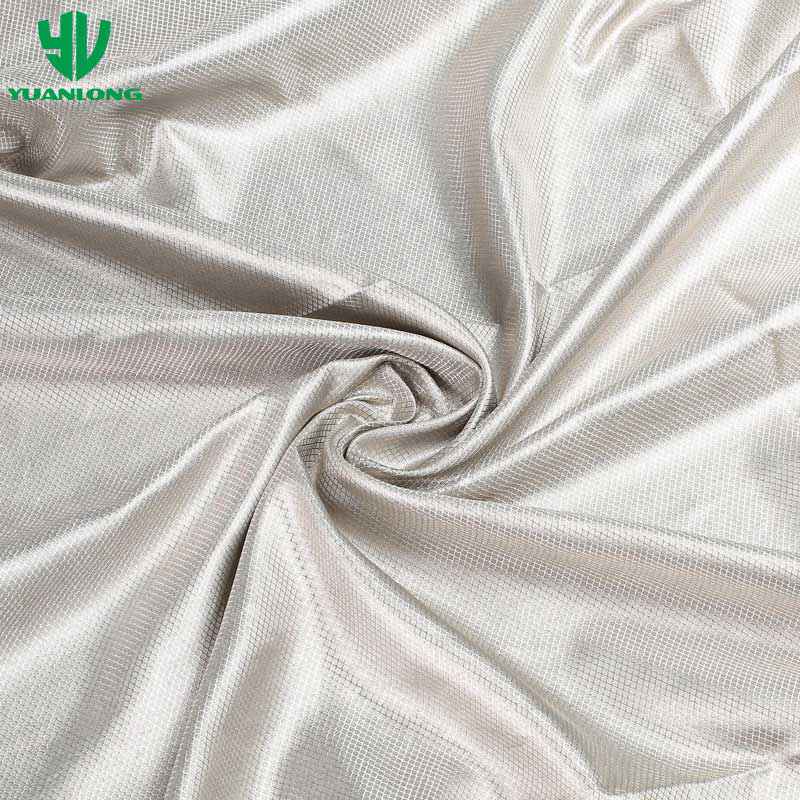

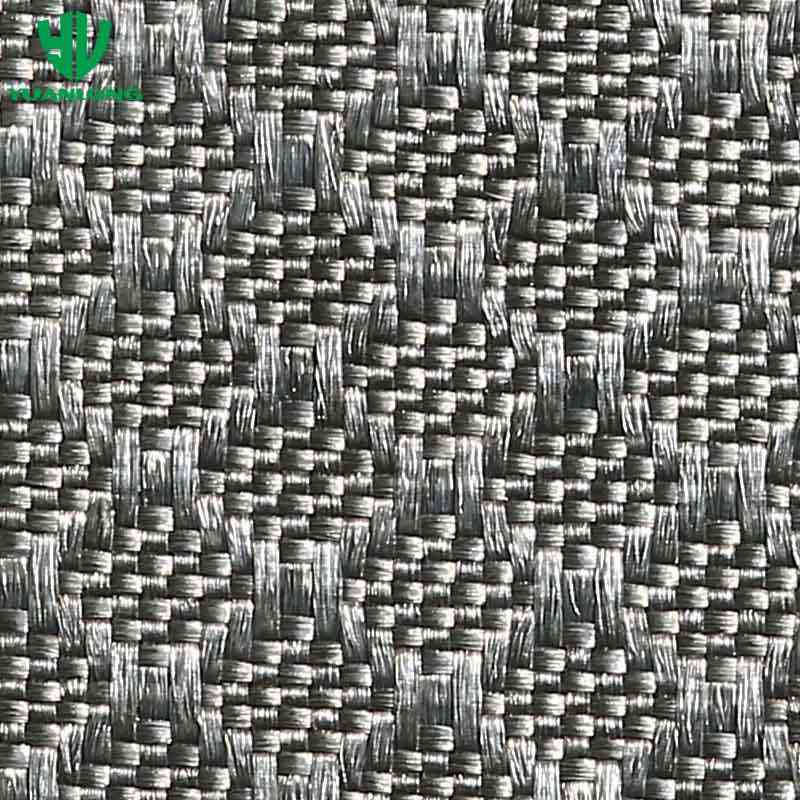

Pure Silver Plated Rip-stop Fabric

Model No.: YL-SLP100

Composition: 100% silver plated on the base fabric of rip-stop polyamide / nylon (20% silver / 80% polyamide)
Weight: 78 g/sqm

Width: 150 cm

Inquire Now Add to Cart

Product Features

Pure silver plated rip-stop fabric is made with 100% silver plated on the base fabric of ripstop polyamide / nylon (consisting of 20% silver and 80% polyamide). So it has good conductive / shielding performance as well as actual textile characteristics. This fabric is usually used for protection against both high frequency and low frequency electromagnetic radiations.

Technical Data

Composition	100% silver plated on the base fabric of ripstop polyamide / nylon (20% silver / 80% polyamide)
Weight	78 g/sqm
Width	150 cm
Surface Resistivity	< 0.2 Ohm/sq
Shielding Effectiveness	≥ 60 dB / 99.9999% (10MHz - 3GHz)

Application

Clothing lining, Medical care, Cable shielding, Handy bags, Room divider, etc.

Test Report

REACH compliant

Care Notes

Wash gently no higher than 30°C

Only neutral detergent

No bleaching

No drying in tumble dryer

No ironing

Notices of Silver Fiber/Plated Products

Our silver plated fabrics do not contain any nano-silver but a solid metallic silver coating.

The silver coating will be oxidized after exposed to the air for a long time, resulting in discoloration. And, however, it has no effect on the conductive / shielding performance.
