Silver Fiber / Plated Fabrics

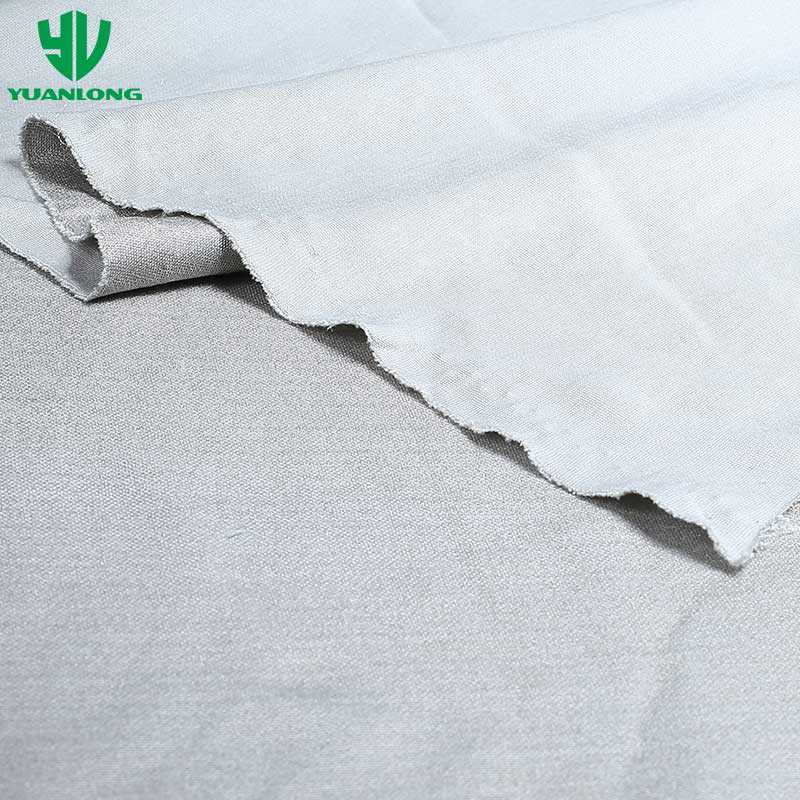

Double-faced Silver Fiber & Modal Knitted Fabric

Model No.: YL-DSL100K

Composition: Face 100% modal, Back 100% silver fiber

Weight: 175 g/sqm

Width: 152-158 cm

Product Features

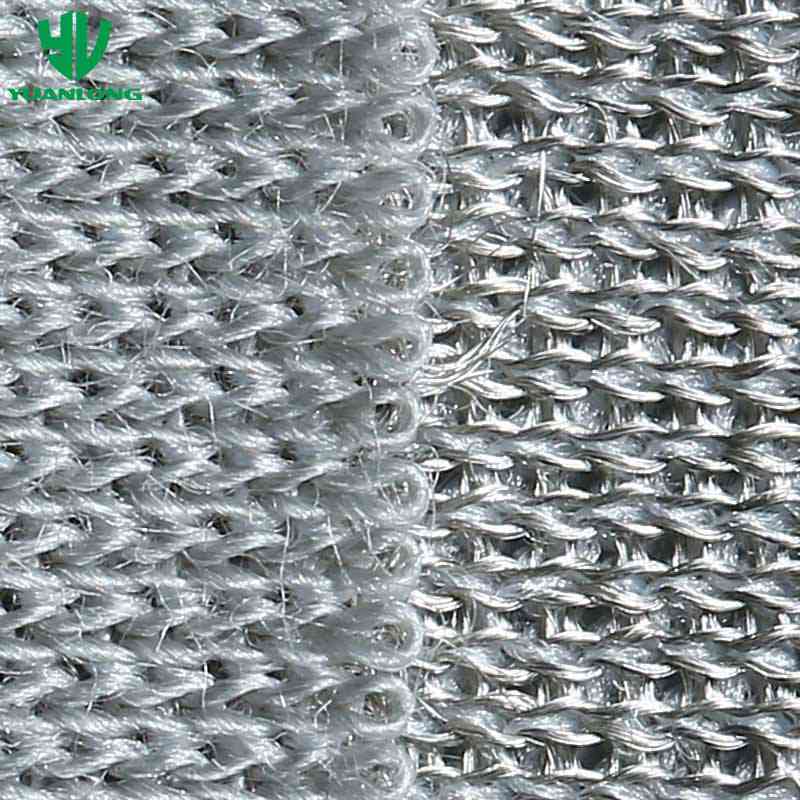

Double-faced silver fiber & modal knitted fabric is with 100% silver fiber on one side and 100% modal on the other side. So it has good conductive / shielding performance as well as actual textile characteristics. This fabric is usually used for protection against high frequency electromagnetic radiation, with high screening attenuation even at very high frequencies, and can also be grounded for shielding low frequency electric fields. It's a little elastic, and so perfect to be used for making close-fitting clothes.

Technical Data
CompositionFace 100% modal, Back 100% silver fiber
Weight175 g/sqm
Width152-158 cm
Surface Resistivity< 0.5 Ohm/sq
Shielding Effectiveness> 50 dB / 99.999% (10MHz - 3GHz)

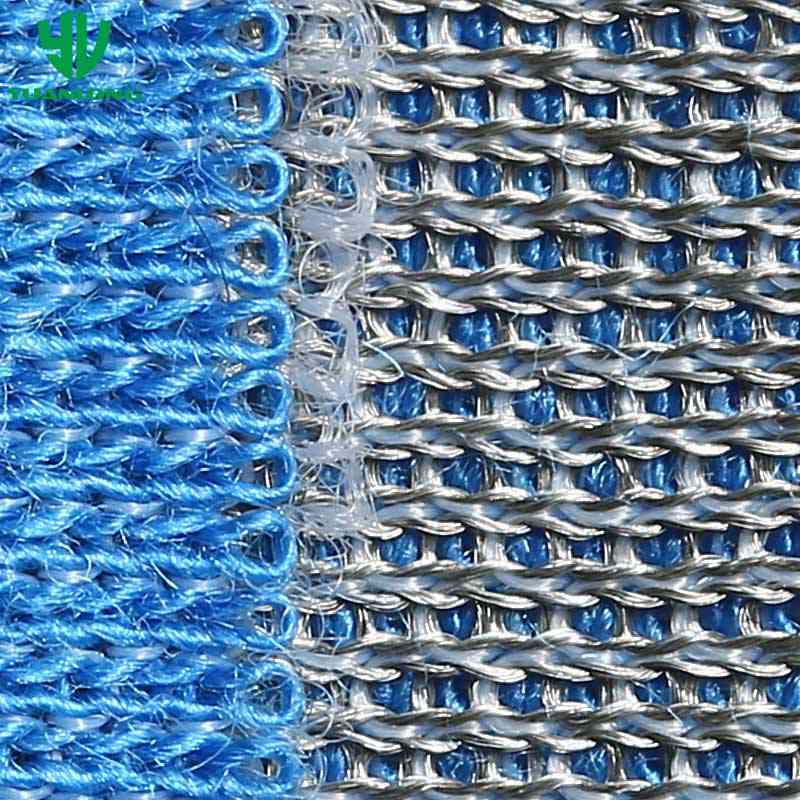

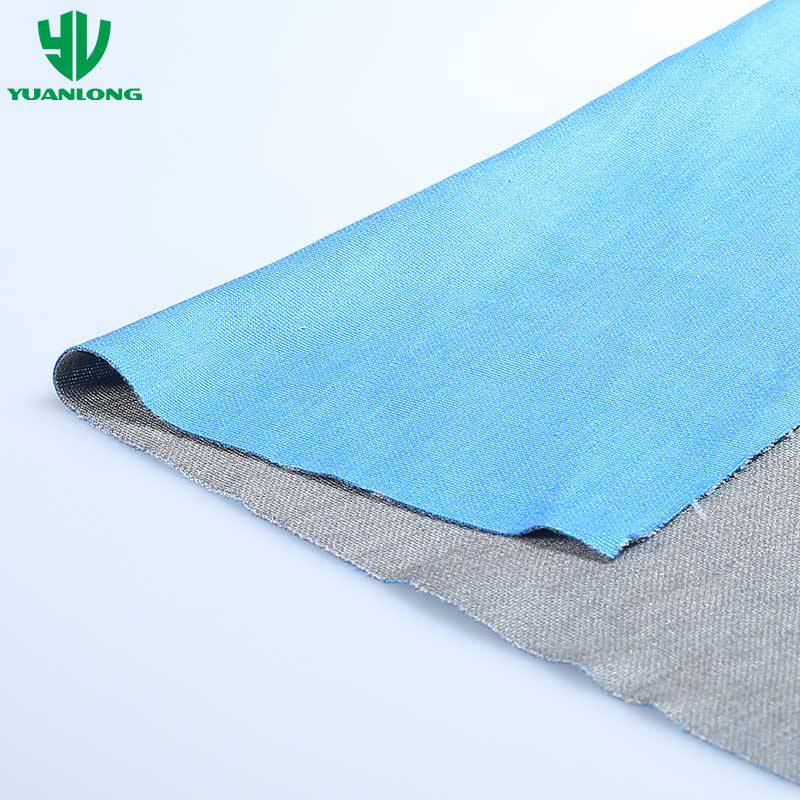

Other Colors AvailableWeights
Rose Red149 g/sqm
Jade Green160 g/sqm
Pink160 g/sqm
Sky Blue163 g/sqm
Purple171 g/sqm
Custom---
Application

Clothes,

Curtain,

Bedding,

Grounding,

Medical care, etc.

Test Report

REACH (SVHC) compliant

Care Notes

Wash gently no higher than 30°C

Only neutral detergent

No bleaching

No drying in tumble dryer

No ironing

Notices of Silver Fiber/Plated Products

Our silver fiber fabrics do not contain any nano-silver but a solid metallic silver coating.

The silver coating will be oxidized after exposed to the air for a long time, resulting in discoloration. And, however, it has no effect on the conductive / shielding performance.
