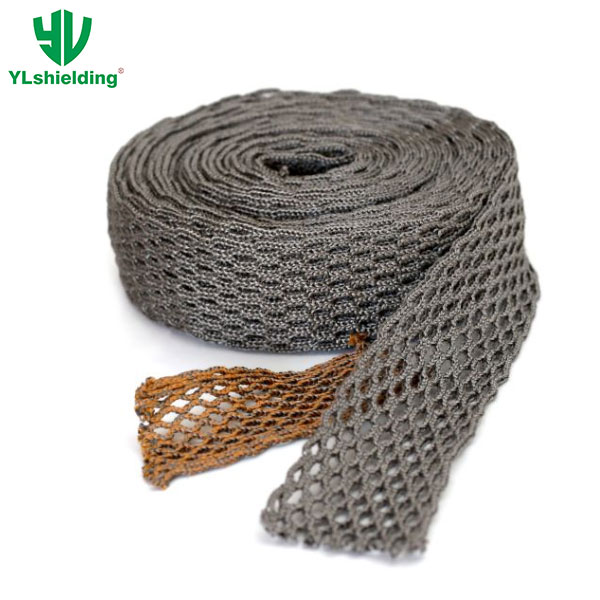

Net Tapes for Quench Ring Cover

Material: 100% stainless steel fiber,

70% stainless steel fiber mixed with

30% PBO,

100% PBO

Width: 45mm / 50mm / 55mm

Thickness: 2.1mm / 3.1mm / 2.5mm

Inquire Now Add to Cart

Product Features

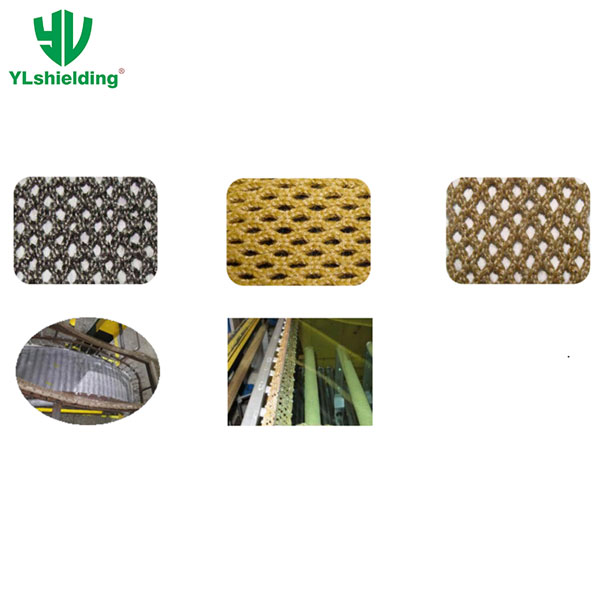

Knitted Net Tapes, widely used for quench ring cover in automotive glass production process.

1) 100% stainless steel fiber net tape has high heat resistance within 700℃, widely used for hot bending forming of tempered glass with medium to complex shapes.

2) The net tape of 70% stainless steel fiber mixed with 30% PBO has high heat resistance, PBO softness and thermal insulation. Heat resistance within 500℃. Mainly used for high elongation and

medium complexity tempered glass hot bending processes.

3) The net tape of 100% PBO has a low heat resistance within 450℃. Due to its thermal insulation

performance and softness, it is mainly suitable for hot bending forming of thin and highly complex tempered glass.

Technical Data

Model No.	Material	Width (mm)	Thickness (mm)	Weight (g/m)	Remark
YL-NT45	100% stainless steel fiber, 70% stainless steel fiber mixed with 30% PBO, 100% PBO	45	2.1	51	Hole 5mm, 6/5
YL-NT50		50	3.1	63	Hole 5mm, 7/6
YL-NT55		55	2.5	76	Hole 5.4mm, 7/6
