Stainless Steel Fiber Knitted Sleeve

Material: 100% 316L stainless steel fiber,

70% stainless steel fiber and

30% aramid,

70% stainless steel fiber and

30% PBO

100% iron chromium aluminum

(FeCrAl) alloy fiber,

Inner Diameter: 20mm / 30mm / 40mm / 50mm / 60mm / 70mm / Custom

Applied Temperature: 350°C – 1000°C

Inquire Now Add to Cart

Product Features

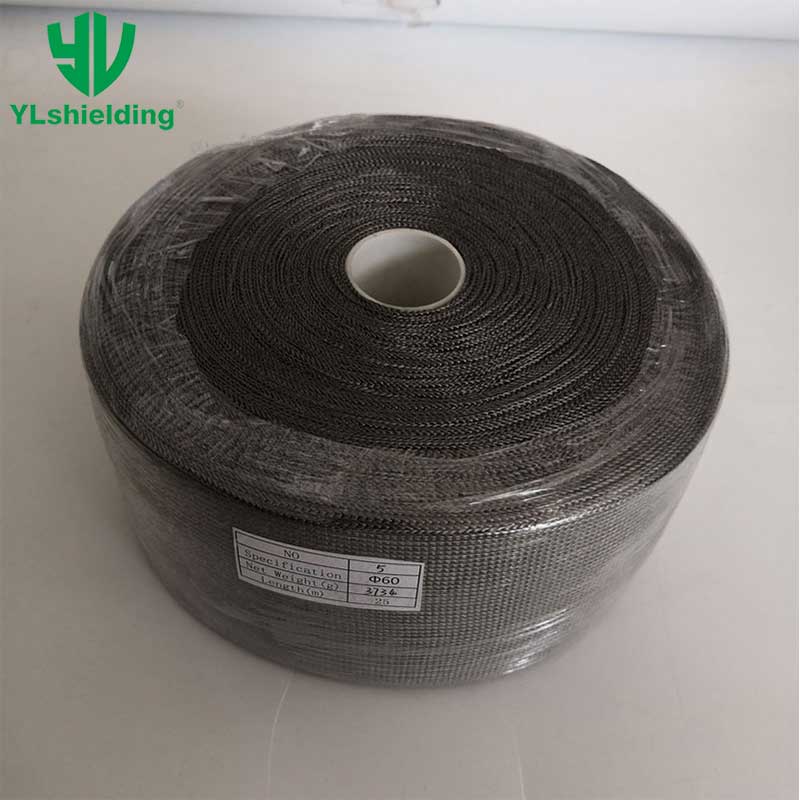

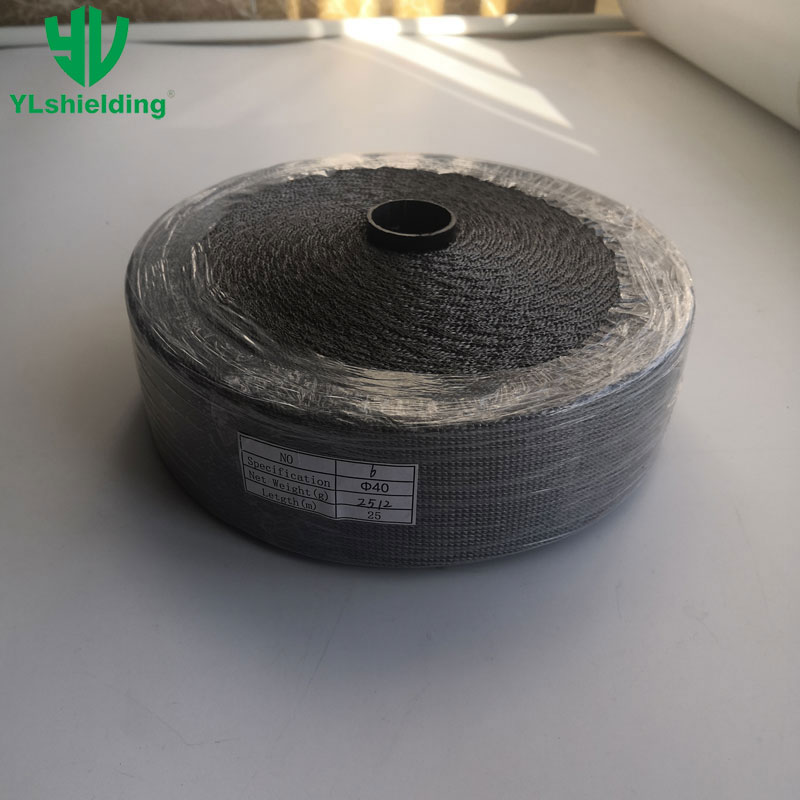

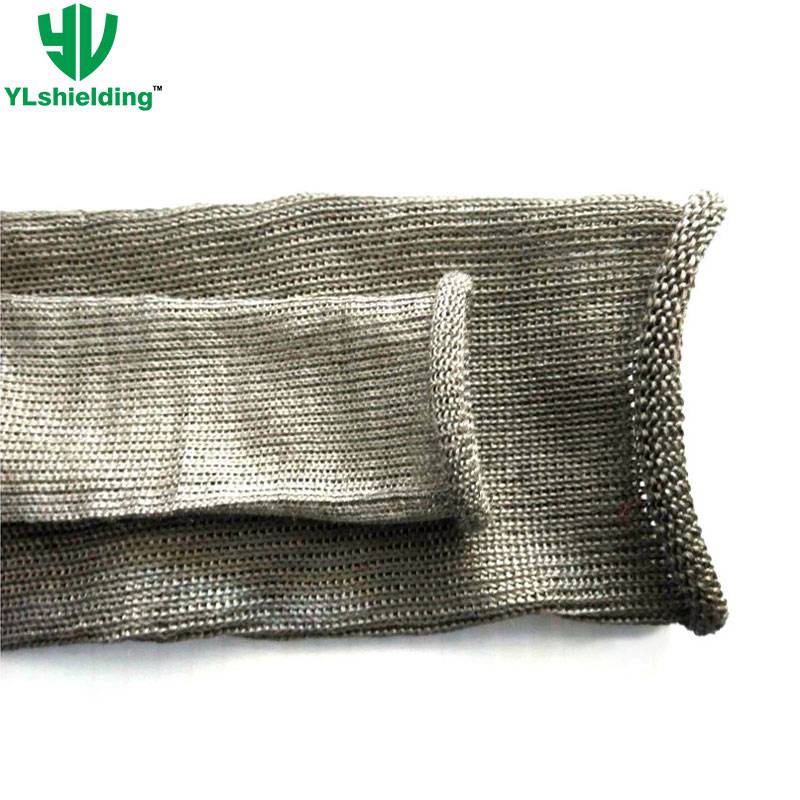

Metal Fiber Knitted Sleeves

1) 100% stainless steel fiber knitted sleeve has high temperature resistance within 700℃. It is mainly used for transporting rollers into and out of the furnace at the end of the furnace. Avoid traces of dust on hot glass.

2) 100% iron chromium aluminum (FeCrAl) alloy fiber knitted sleeve has high temperature resistance within 1000℃. It is mainly used for the inner part of the roller hearth furnace at the end. Avoid traces of dust on hot glass.

3) The metal fiber knitted sleeve of 70% stainless steel fiber mixed with 30% aramid combines stainless steel high temperature resistance with PBO softness. It is mainly used for straight and curved rolls within a working temperature of 350℃.

4) The knitted sleeve of 70% stainless steel fiber mixed with 30% PBO combines stainless steel high temperature resistance with PBO insulation. It is mainly used for straight and curved rolls within the working temperature range of 500℃

Technical Data

Model No.	Material	Diameter(mm)	Thickness(mm)	Weight(g/m)
YL-KS20	100% stainless steel fiber	20	0.96	40
YL-KS30		30	0.96	75
YL-KS40		40	0.96	100
YL-KS50	100% stainless steel fiber, 100% Fe-Cr-Al alloy fiber, 70% stainless steel fiber mixed with 30% aramid, 70% stainless steel fiber mixed with 30% PBO	50	0.96	125
YL-KS60		60	0.96	150
YL-KS70		70	0.96	175

Metal Fiber Braided Sleeves

Model No.	Material	Diameter(mm)	Thickness(mm)	Weight(g/m)
YL-BS06	100% stainless steel fiber, 100% FeCrAl alloy fiber, 70% stainless steel fiber mixed with 30% aramid, 70% stainless steel fiber mixed with 30% PBO	6	0.86	14
YL-BS08		8	0.86	17
YL-BS10		10	0.86	20

Application

Mold cladding materials,

Heat resistant buffer materials in glass product manufacturing process,

Heat insulation materials in other fields, etc.
